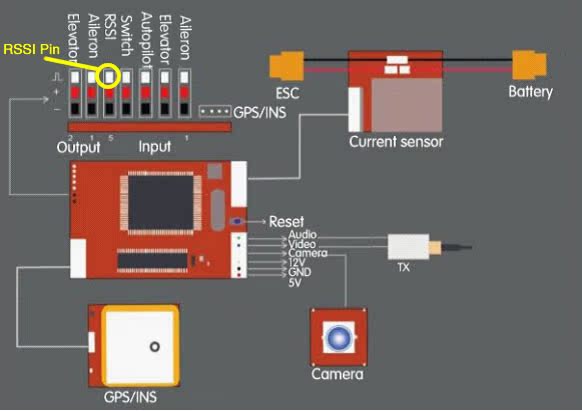

Skylark Dianmu OSD RSSI pin

The RSSI is the upper pin.



Calibration

Please enter into OSD Menu

OSD->Calibrate->RSSI

1. Select RSSI by Switch(Channel 3)
2. Switch(Channel 4) up or down, the RSSI value will blink.
3. Make you RSSI value, max and min
4. Switch(Channel 4) up or down, the RSSI value will stop blink and save the value
5. Switch(Channel 3) up or down, return the flying mode.


No change the value by your hand.
Just keep the RC control power ON / Off
Or
Keeps RC control near / away from RC receiver

The OSD will detect the MAX and MIN value automatically.

Disconnect RSSI pin from OSD
Replace
Turn off the RC power

Please enter into OSD Menu

OSD->Calibrate->RSSI

1. Select RSSI by Switch(Channel 3)
2. Switch(Channel 4) up or down, the RSSI value will blink.
3. Connect/Disconnect RSSI pin with OSD, the OSD will detect the MAX and MIN(0) value automatically.
4. Switch(Channel 4) up or down, the RSSI value will stop blink and save the value
5. Switch(Channel 3) up or down, return the flying mode.
